Reaper, mini reaper, mini wheat and rice cutting shining machine, wheat reaper, rice reaper, reed reaper, mini paddy reaper
Reaper description:
The mini wheat and rice cutting shining machine of 4G-86/4G-120 has simple and reasonable structure, which is convenient for maintenance, with the advantages of small volume, light weight, low energy consumption, stable performance, good reliability and strong applicability, etc. It is especially ideal for cutting rice, wheat, soybean and reed, at the small, mountainous and hill area, and the areas that take advantage of straws.
This machine finishes cutting for 2.5mu land every hour, with the oil consumption of 1kg, which is 20 times of the manual one.
Reaper description:
The mini wheat and rice cutting shining machine of 4G-86/4G-120 has simple and reasonable structure, which is convenient for maintenance, with the advantages of small volume, light weight, low energy consumption, stable performance, good reliability and strong applicability, etc. It is especially ideal for cutting rice, wheat, soybean and reed, at the small, mountainous and hill area, and the areas that take advantage of straws.
This machine finishes cutting for 2.5mu land every hour, with the oil consumption of 1kg, which is 20 times of the manual one.

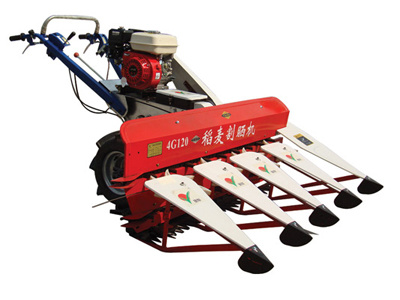

| Model | 4G-120A walking mini paddy & wheat reaper |
| Type of Cutting table | Vertical-Typed |
| Cutting width (mm) | 1200 |
| Min Cutting Height(mm) | ≥50 |
| Placing type | Sidewise & Banded Placed |
| Productivity (M2) | 2400-2700 |
| Overall Dimensions(mm) (L*W*H) | 2200*1600*1100 |
| Total Weight (kg) | around 210 |
| Matched Power (kw) | 3.64 (4.5 HP) |
| Teeth Space (mm) | 127 |
| Running speed of crank (r/min) | 550 |
| Diameter of star wheel (mm) | 280 |
| Working speed (km/h) | 2.6~3.6 |
| Chain speed (m/s) | 2.24 |
| Number of Operator | 1 |
